Flanges provide detachable connections between pipes, valves, pumps, vessels, hoses, and other equipment. Although their function appears straightforward, an incorrect flange can create alignment problems, leakage, premature corrosion, and pressure-integrity concerns.
Mahantam Engineering & Services supplies SS and MS flanges in Vadodara with access to precision CNC manufacturing facilities and in-house quality assurance. This buying guide explains what engineering and procurement teams should confirm before approving flanges for an industrial project.
Start with the Applicable Flange Standard
Flanges are manufactured according to established dimensional standards that define features such as outside diameter, bolt-circle diameter, number of holes, flange thickness, and facing dimensions.
The applicable standard should be clearly stated in the purchase specification. A nominal size and pressure description alone may not be sufficient because dimensions can vary between standards and pressure classes.
Confirm:
- Nominal bore
- Dimensional standard
- Pressure class or rating
- Facing type
- Flange type
- Material grade
- Bore requirements
- Drilling details
Matching the flange standard with the mating component prevents avoidable modifications during installation.

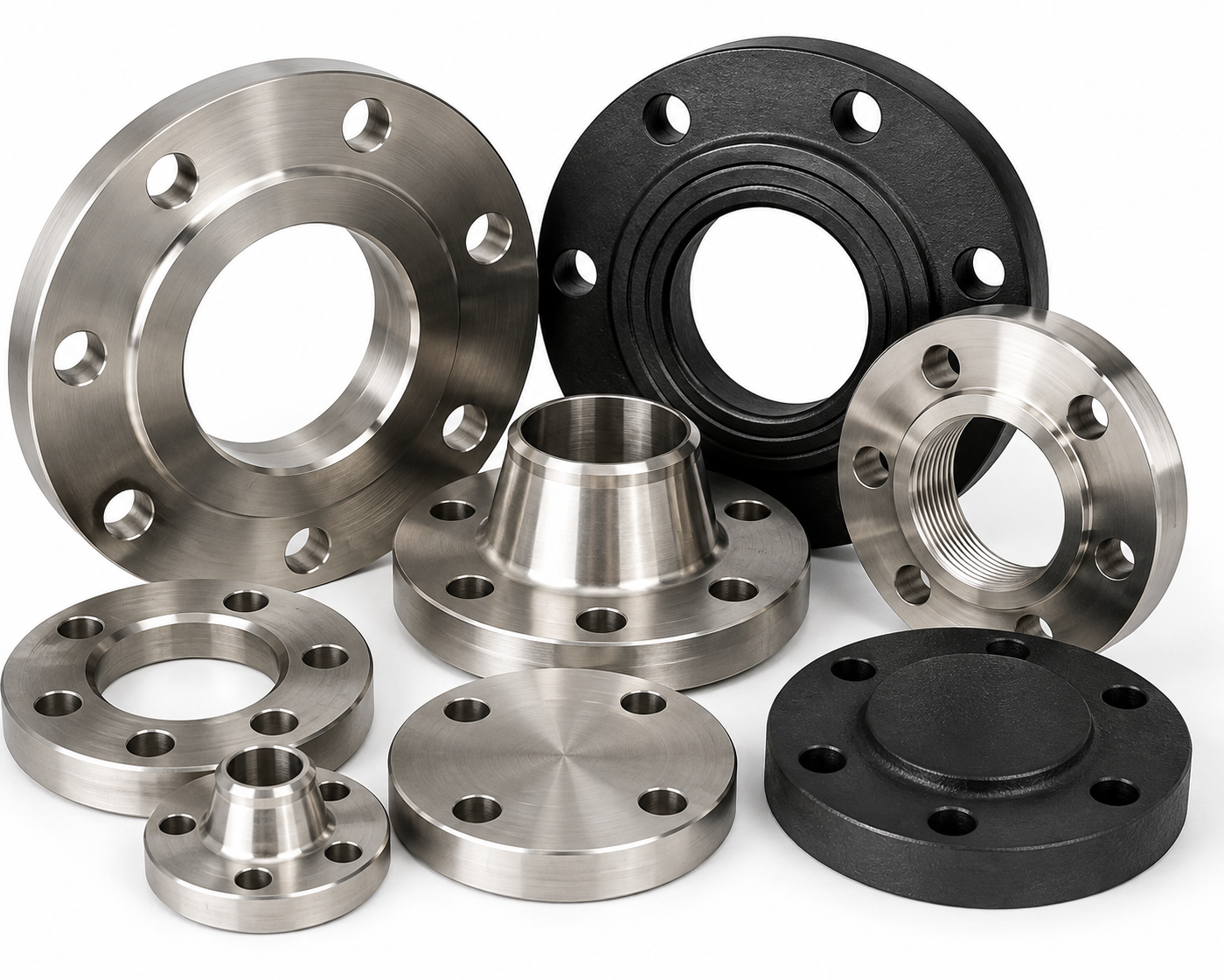

Select the Appropriate Flange Type
The connection method and service conditions influence the flange type.
Weld neck flanges
These flanges have a tapered hub and are butt-welded to the pipe. They are frequently used in high-pressure, high-temperature, or critical piping applications.
Slip-on flanges
The pipe slips inside the flange before welding. Slip-on designs can simplify alignment for suitable utility and process services.
Blind flanges
Blind flanges close the end of a pipeline, vessel nozzle, or equipment opening. They must be selected for the applicable pressure and bolting loads.
Threaded and socket-weld flanges
These configurations may suit certain small-bore systems, depending on the medium, pressure, temperature, and piping specification.
Understand the Difference Between SS and MS Flanges
Stainless steel flanges are often chosen for corrosion resistance, hygiene requirements, chemical compatibility, and outdoor durability. The exact stainless steel grade must match the process medium and temperature.
Mild steel flanges can provide a practical solution for water, air, structural, ducting, and general industrial applications where corrosion is manageable through painting, coating, or controlled operating conditions.
The decision should consider:
- Internal process corrosion
- External weather exposure
- Operating temperature
- Cleaning chemicals
- Contamination restrictions
- Expected service life
- Maintenance frequency
- Project budget
Material selection should never be based only on the initial purchase price.
Check the Facing and Surface Finish
The flange facing creates the contact surface for the gasket. Common configurations include raised face, flat face, and ring-type joint.
Facing selection depends on the system standard, pressure class, gasket type, and mating flange. The surface finish must also be suitable for the gasket. An incompatible finish can make reliable sealing difficult even when the dimensions are correct.
Review Manufacturing and Inspection Requirements
A project-specific flange order may require dimensional inspection, material identification, surface examination, documentation, or other quality checks.
Before ordering, confirm whether the supplier can provide:
- Material test documentation where specified
- Dimensional inspection records
- Material identification
- Flange facing verification
- Drilling and bolt-hole inspection
- Visual and surface-finish checks
- Custom machining support
- Required marking and traceability
For replacement flanges, a drawing or physical sample can help confirm non-standard dimensions.
Use a Final Procurement Checklist
Before issuing the purchase order, check the quantity, size, standard, class, type, material, facing, bore, thickness, drilling pattern, coating, testing, documentation, and delivery schedule.
Engineering teams sourcing SS and MS flanges in Vadodara can submit their drawings and technical specifications to Mahantam Engineering & Services. In-house CNC manufacturing and inspection capabilities enable the company to support standard as well as custom flange requirements for industrial projects.
