Temperature fluctuations can create significant movement in industrial piping. If that movement is transferred directly to equipment or rigid piping components, it can contribute to excessive stress, leakage, deformation, or premature component failure. Stainless Steel Expansion Bellows provide a flexible metallic element designed to accommodate controlled movement under specified operating conditions.

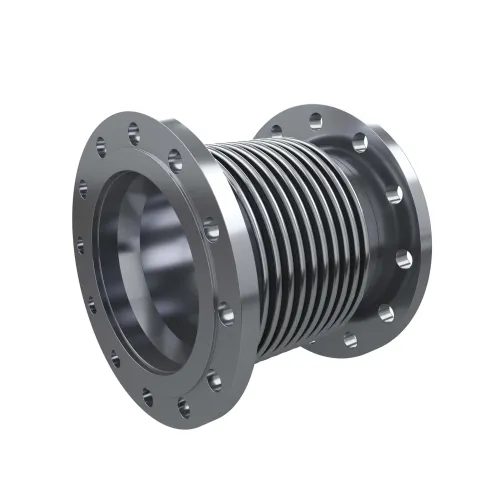

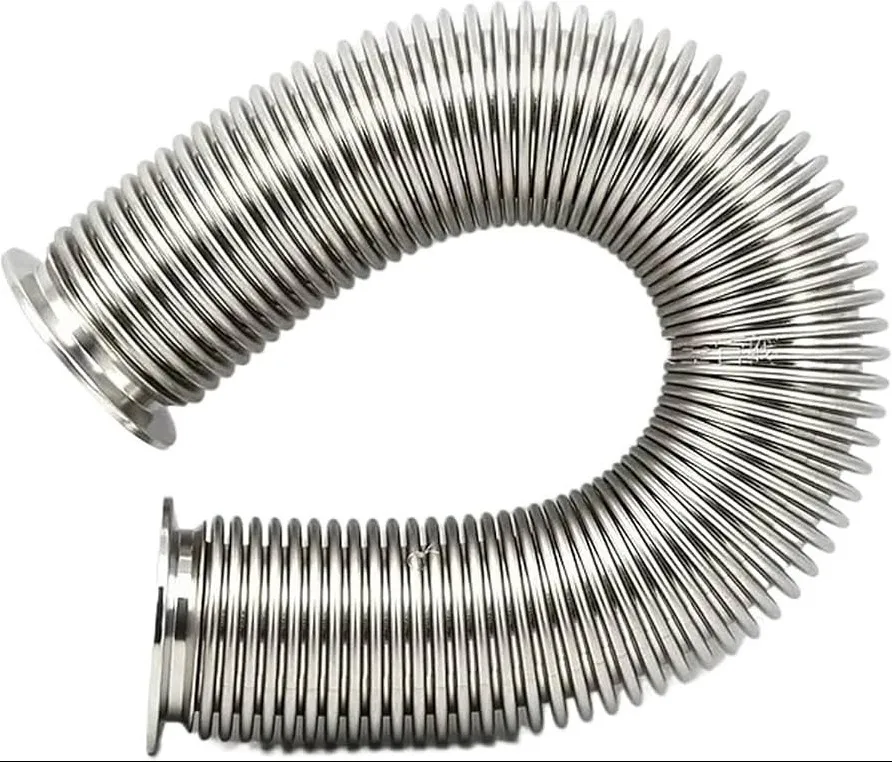

The corrugated geometry of a bellows allows it to flex as the connected piping expands, contracts, or moves. Stainless steel is commonly considered for these applications because suitable grades can provide a useful combination of corrosion resistance, temperature capability, mechanical strength, and fabricability.
However, not every stainless steel bellows is interchangeable.
The correct specification depends on parameters such as pressure, temperature, process medium, required movement, bellows diameter, number of cycles, and the surrounding piping arrangement. Engineers also need to consider whether movement will be primarily axial, lateral, angular, or combined.
In chemical and process installations around Vadodara, Gujarat, material compatibility can be particularly important. A bellows may be exposed internally to process media while its external surface experiences atmospheric or plant conditions. Selecting the material without considering these exposures can affect long-term reliability.
Bellows geometry is another engineering consideration. Increasing flexibility may help accommodate movement, but pressure stability and fatigue life must also be evaluated. This is why simply selecting a bellows by its nominal bore or visual dimensions does not provide enough information for a dependable design.

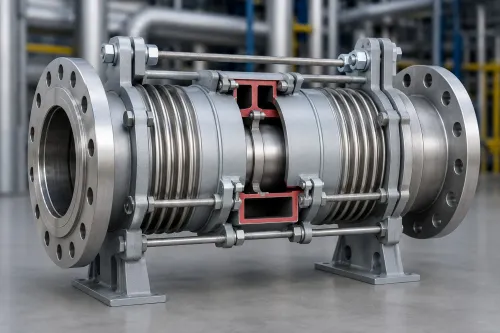

Good piping design also considers what happens around the bellows. Anchors, guides, supports, tie rods, hinges, or other restraints may be required depending on the expansion joint configuration. The bellows itself should not be expected to correct poorly supported piping.
When preparing a technical enquiry, it is useful to provide:
- Pipe size
- Design and operating pressure
- Design and operating temperature
- Process medium
- Required axial, lateral, and angular movement
- Installation length or space restrictions
- Material requirements
- Expected operating cycles
Providing these details gives a manufacturer a much clearer basis for engineering the component.

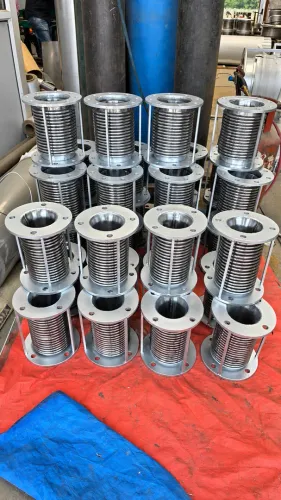

Mahantam Engineering & Services in Vadodara supports industrial requirements involving stainless steel bellows and related expansion joint configurations. The focus should always remain on matching the bellows design to the actual piping duty rather than choosing a component based solely on general specifications.
A correctly engineered stainless steel expansion bellows becomes part of the piping movement-control strategy, helping protect connected systems while allowing predictable thermal movement.
